Quadruped robot¶

In this example a simulated IMU is attached to the body of a quadruped robot. We use NVIDIA Isaac Sim to simulate and control the robot. The robot is modeled after the Boston Dynamics Spot.

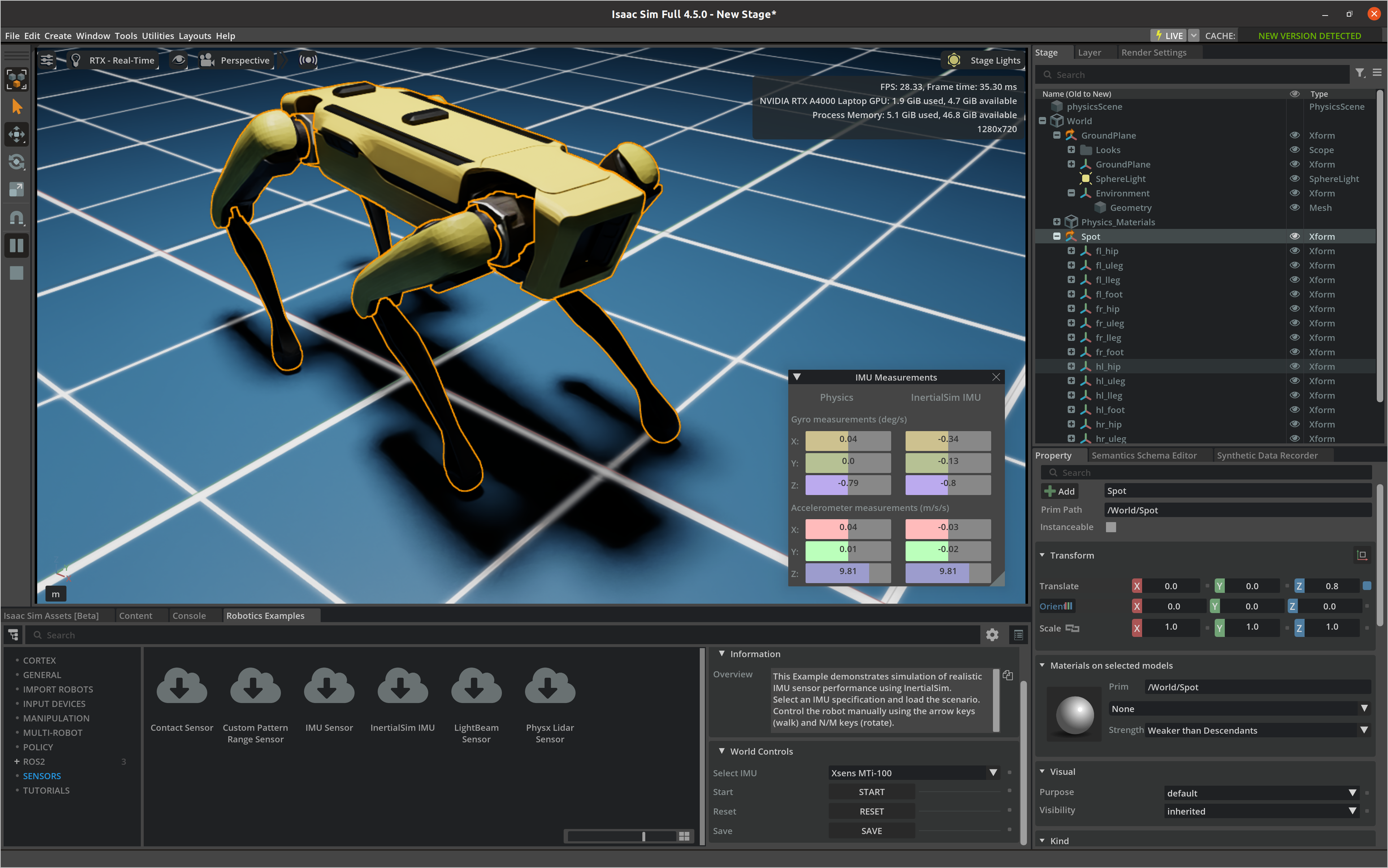

Quadruped Robot

Setup¶

The example runs as an extension in the Isaac Sim UI (see the image above).

The robot is trained to walk on flat terrain using a Reinforcement Learning approach in NVIDIA Isaac Lab. True angular rates and specific forces are available from the simulator and the IMU (or many IMUs) can be placed anywhere on the robot. Each IMU and each simulation run can produce unique and realistic behaviors. This is an important enhancement to the overall domain randomization of the training environment, which has been shown to improve the transfer of learned behaviors from simulation to the real world.

In a training scenario, the robot would be programmatically exposed to tasks of interest (balancing, walking, climbing, etc). In this example, the robot is manually controlled via keyboard input for illustration. The IMU is simulated in the loop in real-time mode as would be required to allow for feedback in control loops.

Simulate the robot¶

The robot is commanded to move through its full range of motions: forward, backwards, side-stepping, and rotating in place. Unlike most other examples, control of the scenario is not via notebook (although that is possible) but via the Isaac Sim UI. The result is saved to file and reloaded for analysis here.

Plot simulated measurements¶

An Xsens MTi-100 IMU is simulated. Isaac Sim provides an IMU sensor object which collects angular rate and acceleration data from the underlying physics engine. It provides a basic moving average filter but no other simulation options. This data is provided as the input to the InertialSim IMU at each physics step in the simulation.

Isaac Sim's default gravity (9.81 m/s/s) is modified to match standard gravity (9.80665 m/s/s).

# -----------------------------------------------------------------------------
# Copyright (c) 2023-2025, Inertial Simulation LLC.
# This example is licensed under the CC BY-NC-SA 4.0 license.
# https://creativecommons.org/licenses/by-nc-sa/4.0/
# Email: info@inertialsim.com
# -----------------------------------------------------------------------------
%matplotlib widget

import pickle

import numpy as np

from inertialsim import plot
from inertialsim.geometry import Vector
from inertialsim.sensors import Measurement

with open('isaacsim_data/imu_measurements.pkl', 'rb') as file:
    physics, measurements = pickle.load(file)

# Aggregate the Isaac Sim physics variables
time = [p["time"] for p in physics]
true_angular_rate = Vector.from_xyz([p["ang_vel"] for p in physics], time)
true_specific_force = Vector.from_xyz([p["lin_acc"] for p in physics], time)

# Aggregate the InertialSim measurements
angular_rate = Measurement.from_measurements([m.angular_rate for m in measurements])
specific_force = Measurement.from_measurements([m.specific_force for m in measurements])

# Plot gyro data
w_plot = plot.TimeSeries(title="Simulated Gyro Measurements", ylabel="(deg/s)")
w_plot.line(angular_rate.time, np.rad2deg(angular_rate.data))
w_plot.legend(["X", "Y", "Z"], loc="lower left")

# Plot accelerometer data
a_plot = plot.TimeSeries(title="Simulated Accelerometer Measurements", ylabel="(m/s/s)")
a_plot.line(specific_force.time, specific_force.data)
a_plot.legend(["X", "Y", "Z"], loc="lower left")

# Plot gyro errors
w_plot = plot.TimeSeries(title="Simulated Gyro Errors", ylabel="(deg/s)")
w_plot.line(angular_rate.time, np.rad2deg(angular_rate.data - true_angular_rate.as_xyz()))
w_plot.legend(["X", "Y", "Z"], loc="lower left")

Analyzing the result¶

The periodic characteristic of each individual step and each direction of motion are immediately visible, particularly in the gyro data. The simulated gyro errors show the standard characteristics of noise and bias expected for this class of sensor. As discussed in Controlling determinism, the user has full control over these error sources. Running repeatable simulations is an appropriate strategy for initial development and for debugging. Running randomized simulations is state of the art for AI/ML training.
